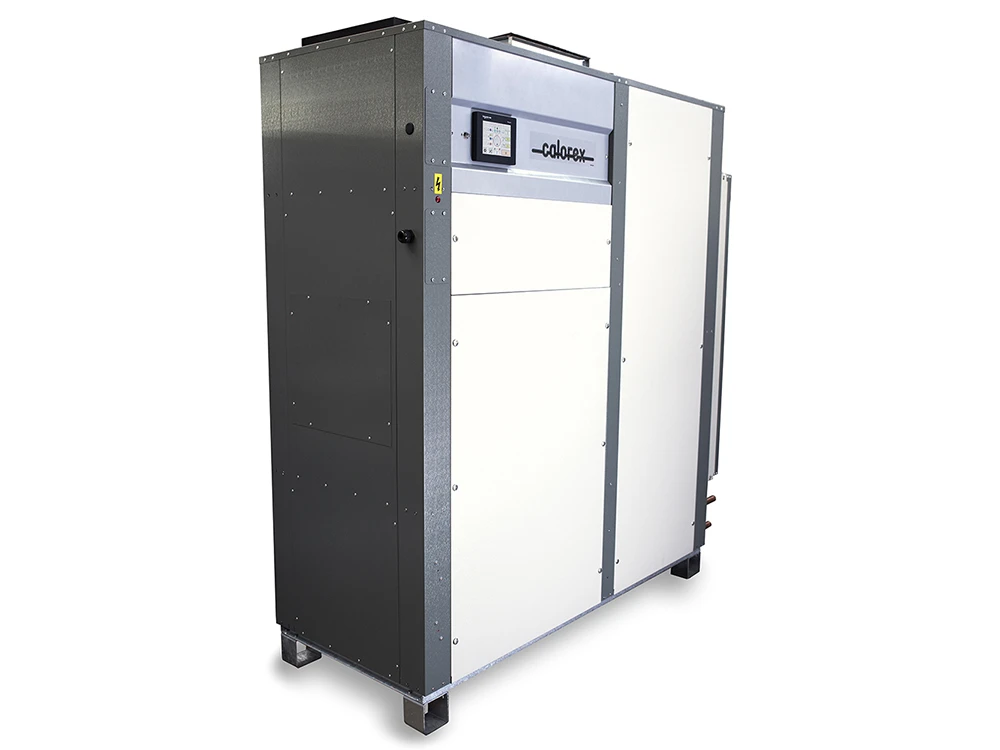

The Calorex Delta, Touch Screen Technology – POA

Full

DELTA THE FULL PACKAGE

The Ultimate environmental control system – designed specifically to take full control of the whole indoor environment and pool water heating. A unique multi-functional single unit offering immense flexibility.

The Delta is an excellent system for use with distribution ductwork, automatically controlling:

– Humidity level

– Air temperature

– Water temperature

– Ventilation

FEATURES & BENEFITS

– Dual mode heat recovery

– Twin fan system

– Ozone friendly

– Low running costs

– Compact design

– Built to suit each project

– Optional configurations

– Full service back-up

– BMS compatability option

Options

• Model 1-6 single or three phase
• Model 8-16 three phase only
• Left hand and right hand orientation units
• Fan orientation



Each Delta is an extremely energy efficient unit designed and built specifically to suit each pool project. A combination of its compact design and optional positions of ductwork spigots and acces  panels, establishes the Delta as the ultimate equipment in its class.

NOTE: All Deltas require a sufficient supply of electricity and low pressure boiler water. For guidance, LPHW circulation pumps needed: Delta 1-8, Grundfos UPS 25-80 (or similar) Delta 10-16, Grundfos UPS 40-120 (or similar).

GOVERNMENT CASH BACK SCHEME

The Calorex Delta 14 and 16 benefit from ECA scheme approval, this means the Delta 14 and 16 are recognised as able to provide low carbon and energy efficent environmental contol.

These two units are the first and only specialist swimming pool heat pump heat recovery machines to be included in this Government Cash Back Scheme.
